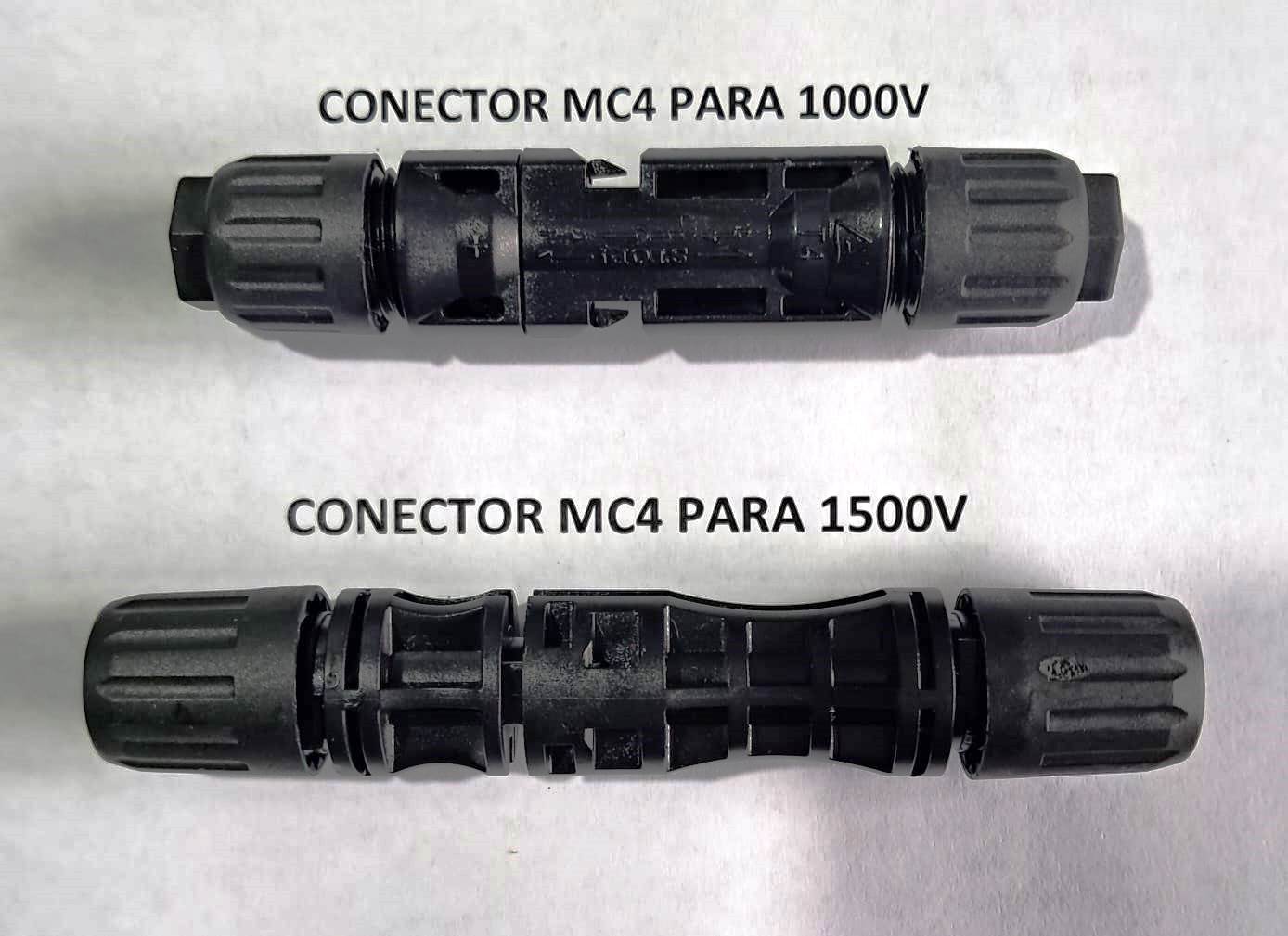

Specification Of mc4 plugs solar panel connectors types
Insulation material PPO
Rated Voltage TUV 1500 DC/ UL1500V DC
Rated Current 20A-30A
Test voltage 6KV(50Hz,1Min)
Contact material copper, tin plated
Contact resistance less than 0.5 m ohm
Degree of protection IP68
Pin dimension 4.0 MM
Compatible Solar cable 2.5/4.0 /6.0 mm² (14/12/10 AWG)
